Title: DP-8 Reverse sterilizer
Keywords:Reverse sterilizer,Inverse sterilizer,bottled juice sterilizer
QUICK DETAILS:
Model: DP-8
Brand: FILL-PACK
Power: 0.75kw
Voltage: 380V 3PH 50HZ or customized
Driven force type: Electrical
Automation degree: Automatic
Dimension: 8000*800*1200mm
Weight: 800kg
Application: Various shape&material of bottle
Packing category: Bottles
Packing material: PET , PE, Glass
Condition: New
PROPERTIES:
Capacity: 0-10000BPH
Applicable bottle size: Dφ50-φ95mm H:150-340mm
Key material: SUS304
Fuction: Sterilizing to caps, and at the mean time to soften sealing pad inside cap, enhance sealing tightness between bottle and cap to assure product quality
Processing liquid: Juice,Milk&Tea
Available inverse time:28~30s adjustable
Inverse angel:90°
Bottle distance:76.2mm
Origin: ZhangJiaGang, China
After sales service: Engineers avaliable to service overseas
Qualification: CE, ISO9001-2008
10000BPH Reverse sterilizer for juice filling project in Jamaica

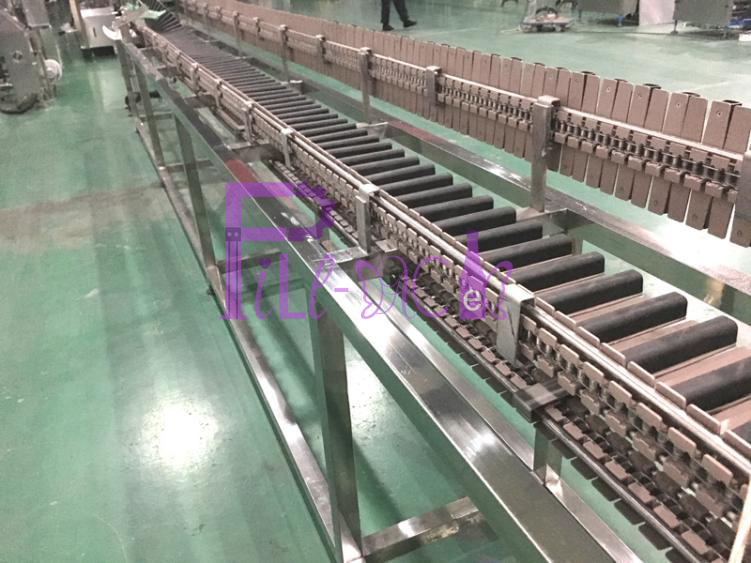

The principle is : bring filled-capped bottles in inclining position, use the liquid itself temp to do 2nd sterilizing to caps, and at the mean time to soften sealing pad inside cap, enhance sealing tightness between bottle and cap to make sure product quality .
The body material is SUS304; The transportation is by heat-resistant plastic chain and stainless steel chain.
Advantage
1, It can be used for various of bottle shapes and volumes;
2, Easy construction for easy maintenance;
3, Speed and sterilizer time adjustable;
Parameter:
Capacity:0-10000BPH
Available inverse time :28~30s adjustable
Inverse angel:90°
Bottle distance:76.2mm
Applicable bottle:Dφ50-φ95mm H:150-340mm
Consumption:0.75KW
Weight:800kg
Inverse Dimension: 7000*800*1200mm
Total dimension: 8000*800*1200mm
Packing: Wooden case packing.
Delivery Time: 30-35 working days after down payment.
Installation:
A. After the machines are delivered to customer’s factory, please arrange preparation work mentioned in advance;
B. If you needed, We will send technicians to the factory after preparation work is completed; Based on the buyer prepare to all the water, electricity, wire and other conditions, the testing will be finished in a week.
C. Technicians will be responsible for guide on-site installation and testing machines.
D. Meanwhile technicians will give free training lessons to labors during testing here.
E. The customer should be responsible for the room, meals and board and the two-way air tickets and visa and fee as well the allowance 100 USD per day for each person. And should be also responsible for the engineer’s personal safety.
Guarantee period and after-sales services
A. Warranty for machinery: one year for all machinery from shipment date.
B. During this guarantee period, We will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, We will provide the buyer spare parts at cost price.
C. The workers must operate the machines according to the usage of the machine. We do not be responsible for the accident which is made by the improper operation of workers. And for all the force majeure can’t be controlled,avoided and prevented, such as the natural disaster, strike, and earthquake and so on.
