Different sizes FRP fiberglass water filter vessels/ FRP tanks for water treatment

    Title: Different sizes FRP water filter vessels/ FRP tanks for water treatment

    Keywords: water treatment machine,FRP water filter vessels,water filter vessels

Inquire Now
  • Quick Details
  • Detailed Descriptions
  • Packaging & Delivery
  • Services

    QUICK DETAILS:

    Volume (L):40 and bigger

    Brand: Fillpack

    Productivity1000L/Hour

    Use for:water filter

    Weight:5kg

    Size:250*890 and bigger

    Application:  Water purifying

    Packing category: Wooden case

    Packing material: Wood

    Condition: New


    PROPERTIES:

    Capacity: 1000LPH

    Key material: fibergrass

    Fuction: Filter for drinking water

    Processing liquid: Sea water,Tap water ,Spring water,Brackish water

    Origin: ZhangJiaGang, China

    After sales service: Engineers avaliable to service overseas

    Qualification: CE, ISO9001-2008

    Packing: Wooden case packing.

    Delivery Time: 30 working days after deposit


    Different sizes FRP fiberglass water filter vessels/ FRP tanks for water treatment
    Descriptions:

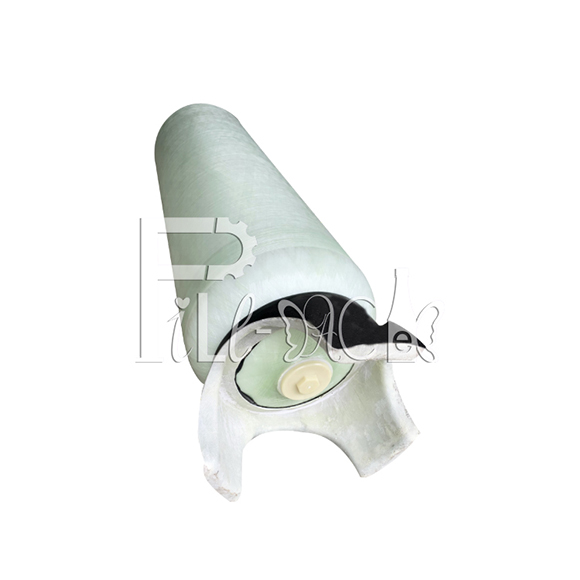

    FRP Tank is a kind of nonmetallic composite which is made by resin and fiber glass. It has the advantages of corrosion resistance, high strength, long service life, flexible design, and strong processability. FRP tanks are widely used for RO system and water softeners.

    Product features:
    For multi-media filter and softerner
    1).PE liner with FRP filament winding,high quality but competitive cost:
    2).2.5" precision injected model with threaded opening for 8"-16" dia.Tanks ;
    3).4"precision injected model with threaded opening for 16",18",24",30",36" dia.Tanks;
    4).Continuous strands of fiber-glass with high strength Epoxy resin;
    5).Completely rust and corrosion free;
    6).FRP reinforced tripod base.
    7). Available in natural and blue or custom color.

    Application:
    All feed water and waste water treatment application, such as river water, well water, borehole,
    underground water, tap water, spring water or city water,
    This product is widly used in commercial and industrial field.

    Parameters
    Items
    Model
    Nominal dimension (mm)
    Opening
    Volume (L)
    Recommended flow(T/H)
    Base
    1.1
    1035
    ∮250*890
    2.5’’
    39.4
    0.5~1.0
    standard
    1.2
    1054
    ∮250*1373
    2.5’’
    63.5
    0.6~1.5
    standard
    1.3
    1252
    ∮300*1320
    2.5’’
    85.9
    1.6~2.2
    standard
    1.4
    1344
    ∮330*1117
    2.5’’
    83.1
    1.5~2.0
    standard
    1.5
    1465
    ∮350*1650
    2.5’’
    147
    2.2~3.0
    standard
    1.6
    1665
    ∮400*1650
    2.5’’
    191.3
    3.0~4.0
    standard
    1.7
    1865
    ∮450*1650
    4”
    242.3
    3.5~4.5
    round
    1.8
    2069
    ∮500*1752
    4”
    310.4
    4.0~5.5
    round
    1.9
    2162
    ∮550*1575
    4”
    312.7
    4.0~6.0
    round
    1.10
    2472
    ∮600*1830
    4”
    477.5
    6.2~8.2
    round
    1.11
    3072
    ∮750*1830
    4”/4”
    725.9
    7.2~12.2
    tripod
    1.12
    3672
    ∮900*1830
    4”/4”
    1030.2
    13.2~16.2
    tripod
    1.13
    4079
    ∮1000*2006
    4”/4”
    1338.3
    14.3~19.5
    tripod
    Notice:
    1.  The tank models from 0517 to 8079, if your prefer model not included in above list, pls check with our sales directly, they will offer you suitable models.
    2.  Color customization:
    If order quantity more than 100pcs with same model, then no color customization fee.
    If less than this quantity then can not colour customization.


    1. the Water treatment machine is packed by wooden case.

    2. The delivery date of Water treatment machine is within 30 days after payment.



    Guarantee:

    We response for one year warranty for the machine,  however, it without any human conduct. And provide one-year free spare part for client.  And send engineer to client’s company with client’s provision for flight charge and accommodation. Help install the machine, teaching their staff operate the machine and also, we do have a private school which help our client sending their staff to china, help them training.


    After sales service:

    1.Installation & adjustment

    After the equipment are arrived at the customer’s site, the customer is responsible for unpacking and arranging the equipment according to the placement drawing; and does under our install-adjust technicians’ guidance. Costs of the staff are decided at last.


    2.Training

    We are responsible for offering the technical training to user. The training content includes the structure and maintenance of the equipment, control and operation of the equipment. Through training, users' technical staff can grasp and the skill of operation and maintenance proficiently, and deal with the general troubles in time. We will appoint qualified technical staff for the guidance.

    The buyer can send staff to our company for learning.


    3.Quality assurance

    We guarantee the goods offered are brand-new, not used, with latest design and suitable material made, and we guarantee the specification of the equipment is consonance with the contract.

    We guarantee the line achieve product technical performance indicators within 5 days after feeding operation through the correct guidance of the installation and commissioning.

    We are responsible for the fault and damage of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc. that all belong to our responsibility.

    The warranty period is 12 months after acceptance check of the production line. If there is any different between the furnished equipment in the customer’s factory and the equipment concerned in the contract, the users have the right to pass the inspection book to the legal department to claim for compensation to our company within goods warranty period.


    4.Warranty

    Offer 12 months maintenance period to the problem that caused by our design, manufacture and the material quality, and offer the relevant parts and effective service for free for above reason. We will offer a widely and favorable technical support, after service all the time after guarantee period.
