Gallon Filling Machine

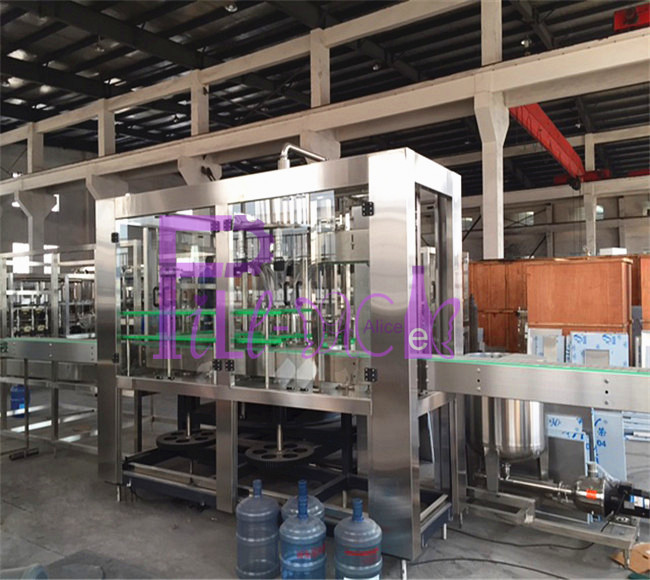

1200 BPH rotary type barrel filling line for USA

General:

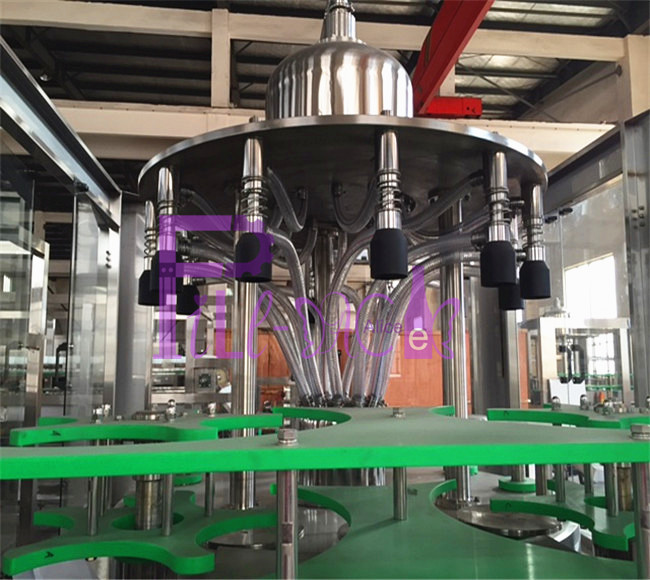

This barrel filling line adopts micro pressure filling that barrel irrigation fluid through the pump to the water, always ensure that the filling process was full of barrels of irrigation fluid state, irrigation fluid barrel top with a pressure sensor, a pressure sensor through the signal into the inverter by inverter control pump motor speed, thus ensuring a constant filling pressure.

Bottle fed by a star wheel into the bottle filling machine, filling area to reach the starting point, the roller bottles along the cam will hold up, start filling valve for filling a bottle, and with the body, etc. together synchronously rotating; bottles arrive irrigation end point loading zone, to reach the cam roller bottles with low self-reset Close filling valve, filling the end of the barrel with the star wheel sent out of the bottle filling machine.

Component:

PLC: Mitsubishi

Air components: Airtac

Parameters:

Power: 2KW

Dimension: 1500*1500*2500mm

Weight: 2500kg
