Title: PET bottle Carbonated drink filler for cola or gas water 10000BPH
Key words: carbonated drink filler, carbonated filling machine, carbonated drink filling machine
QUICK DETAILS:
Model: DCGF32-32-10
Brand: FILL-PACK
Main motor Power: 3kw
Voltage: 380V 3PH 50HZ or customized
Driven force type: Electrical
Automation degree: Automatic
Dimension: 3800*3200*2200mm
Weight: 6000kg
Application: carbonated drink
Packing category: Bottles
Packing material: PET
Condition: New
PROPERTIES:
Capacity: 0-10000 BPH (0.5L)
Applicable bottle size: 0-2L
Key material: SUS304
Fuction: carbonated drink filling
Processing liquid: carbonated drink
Filling precision: +/- 1mm
Origin: ZhangJiaGang, China
After sales service: Engineers avaliable to service overseas
Qualification: CE, ISO9001-2008

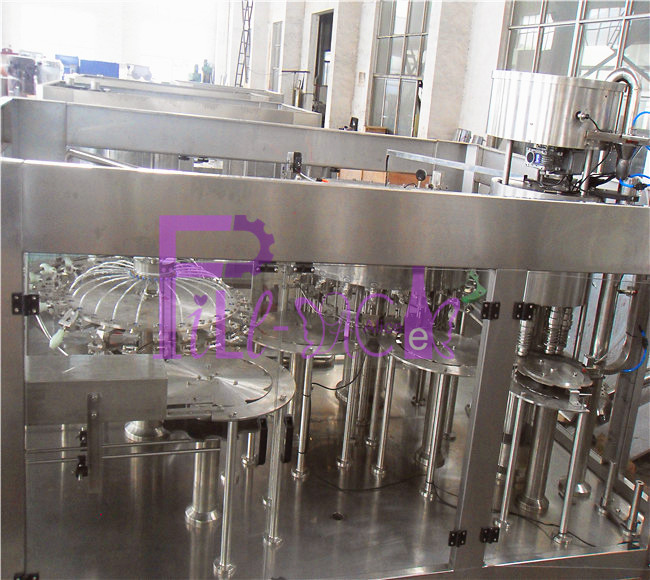

1. This CARBONATED DRINK FILLER is automatic washing filling capping three in one machine. It’s of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.
2. Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
3. Filling Part is mainly composed of filling barrel, filling valves (BALANCE pressure filling), bottle hanging device / bottle pedestals, elevating device, liquid indicator, pressure gauge, etc.
4. Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
5. Main electrical components are all imported from world famous brands to guarantee excellent performance of the whole machine.
Main parameters：
| Model | DCGF | DCGF | DCGF | DCGF | DCGF |
Washing No. | 18 | 24 | 32 | 40 | 50 |
Filling No. | 18 | 24 | 32 | 40 | 50 |
Capping No | 6 | 8 | 10 | 12 | 15 |
Production Capacity(500ml) | 6000BPH | 10000BPH | 12000 | 16000 | 24000 |
Install Capacity(KW) | 4 | 4.8 | 7.6 | 8.3 | 9.6 |
Overall size | 2650×1900×2400 | 2900×2100×2400 | 3800×3200×2200 | 4550×2650×2400 | 5450×3210×2400 |
Sea worthy packing for carbonated drink filler
35 working days after bottle samples received
Workshop veiw:
Processing equipment
Cutting machine | Bending machine |
|
|
Lathe | Drilling machine |
|
|
1, Pre-quotation communication to know customers’ excat requirement and give proper suggested frame;
2, Quotation offer as in advance communications;
3, Quotation explanations given if necessary;
4, Plant design and bottle-cap-label searching & design if needed after offer confirmed;
5, Contract signing basing on all discussed;
6, Production as contract items;
7, Inspection and delivery done as contract standard;
8, Technician service overseas as contarct agreed;
9, Whole life after sales service for spare parts;
