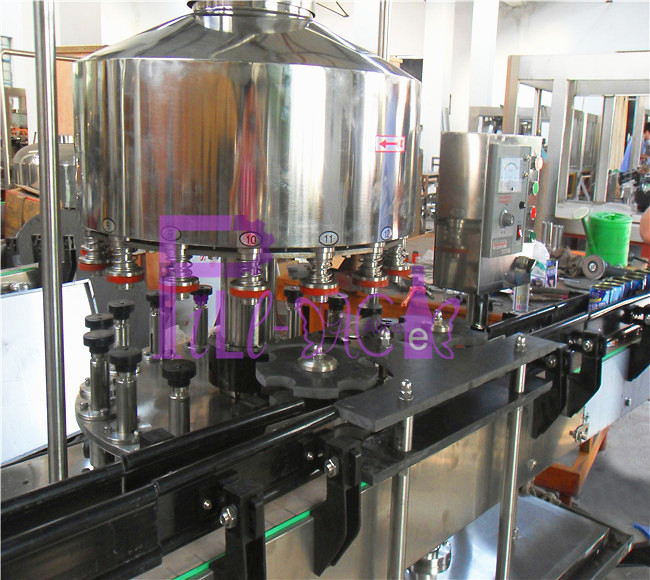

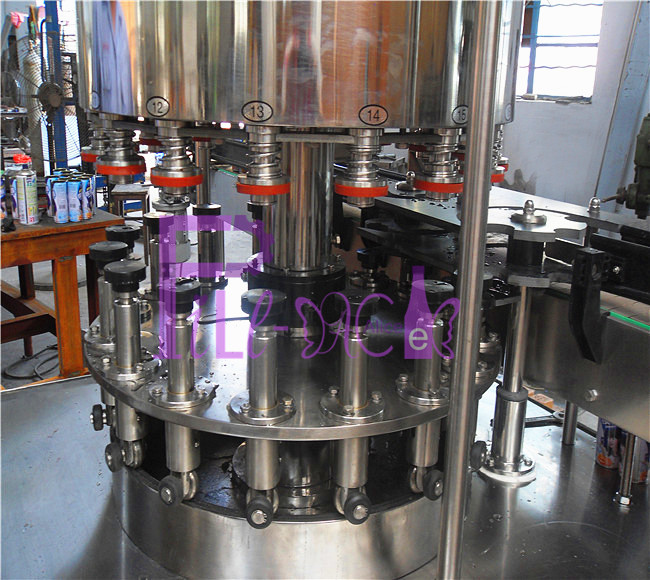

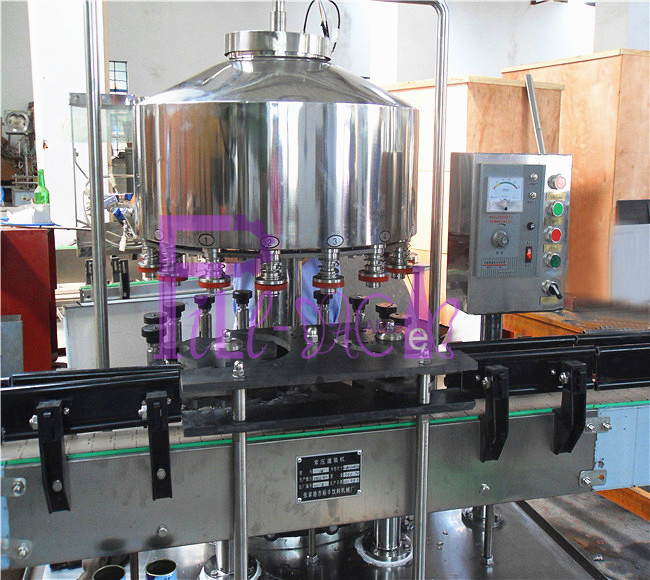

Title: Rotary type can filling machine with cam system
Key words: can filling machine, can filling line, juice canning line
QUICK DETAILS:
Model: CG-12
Brand: FILL-PACK
Power: 1.2kw
Voltage: 380V 3PH 50HZ or customized
Driven force type: Electrical
Automation degree: Automatic
Dimension: 850*800*1900mm
Weight: 500 KG
Application: juice
Packing category: Can
Packing material: tin plate
Condition: New
PROPERTIES:
Capacity: 0-2000 BPH (0.5L)
Applicable bottle size: 0-0.5L
Key material: SUS304
Fuction: can filling
Processing liquid: juice
Filling precision: +/- 1mm
Origin: ZhangJiaGang, China
After sales service: Engineers avaliable to service overseas
Qualification: CE, ISO9001-2008
Can filling machine-Principle:
Motor drives main axis move up and down, when filling head moves down and close to bottle mouth, vacuum pump will make sustained vacuum inside bottles, filling pump make the filling, extra air and liquid will be discharged back to upside vacuum tank; This kind of filling model is good for liquid precision control, no leakage through filling heads; Needle type filling head is suitable for small bottles.
Can filling machine-Construction and function:
1, Frame desk, to support;
2, Vacuum system, to make sustained vacuum inside bottles to make sure filling precision; Including vacuum pump, vacuum tank and vacuum pipes;
3, Filling system, to process filling; Including filling pump, liquid tank and filling pipes-heads;

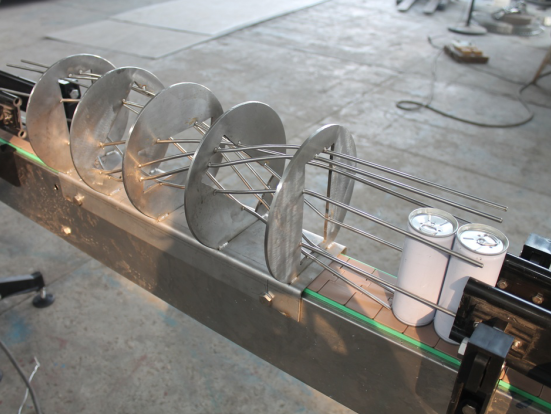

4, Conveyor rail;
Sea worthy packing for can filling machine
25 working days after can samples received
1, Pre-quotation communication to know customers’ excat requirement and give proper suggested frame;
2, Quotation offer as in advance communications;
3, Quotation explanations given if necessary;
4, Plant design and bottle-cap-label searching & design if needed after offer confirmed;
5, Contract signing basing on all discussed;
6, Production as contract items;
7, Inspection and delivery done as contract standard;
8, Technician service overseas as contarct agreed;
9, Whole life after sales service for spare parts;
