Wine Bottling Machine

General:

The wine filling machine can be used for all kinds of non-carbonated drinks, it absorbs open and concise design concept, use as less parts as it can be in the whole machine production. So the machine present in front of you is quite easy and friendly control. The whole machine is produced by SUS304 except those transmission parts to be in cast iron to make sure long time using, it can be used for all kinds of glass bottles and strong PET bottles. Little changement need to be done when change bottles.

Principle:

Motor drives main axis move up and down, when filling head moves down and close to bottle mouth, vacuum pump will make sustained vacuum inside bottles, filling pump make the filling, extra air and liquid will be discharged back to upside vacuum tank; This kind of filling model is good for liquid precision control, no leakage through filling heads; Needle type filling head is suitable for small bottles.

Construction and function:

1, Frame desk, to support;

2, Vacuum system, to make sustained vacuum inside bottles to make sure filling precision; Including vacuum pump, vacuum tank and vacuum pipes;

3, Filling system, to process filling; Including filling pump, liquid tank and filling pipes-heads;

4, Conveyor rail;

Characters:

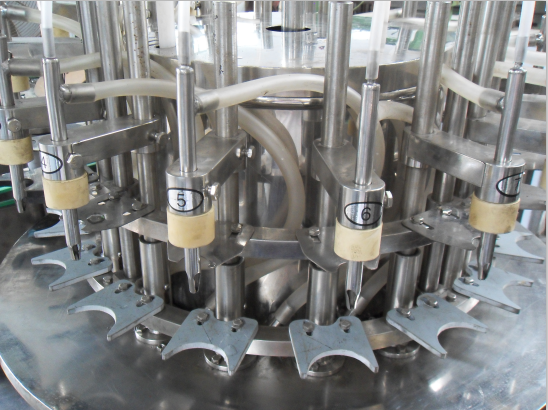

1, Needle type filling heads can be helpful for small wine bottle necks;

2, With bottle neck sealing pads, the machine can be applied easily for bottles with different bottle necks;

3, It can be used for different volume of bottles, only adjusting needed if bottle diameters are same; Small change parts will be needed with easy change if different diameter bottles will be applied;

Parameters:

Capacity: 1000-2000BPH

Vacuum pump: XFC-5500 0.55KW 2800r/min

Motor: Y801-4 0.55KW 1390r/min

Total power: 1.2KW

Dimension: 850*800*1900mm

Weight: 500kg
